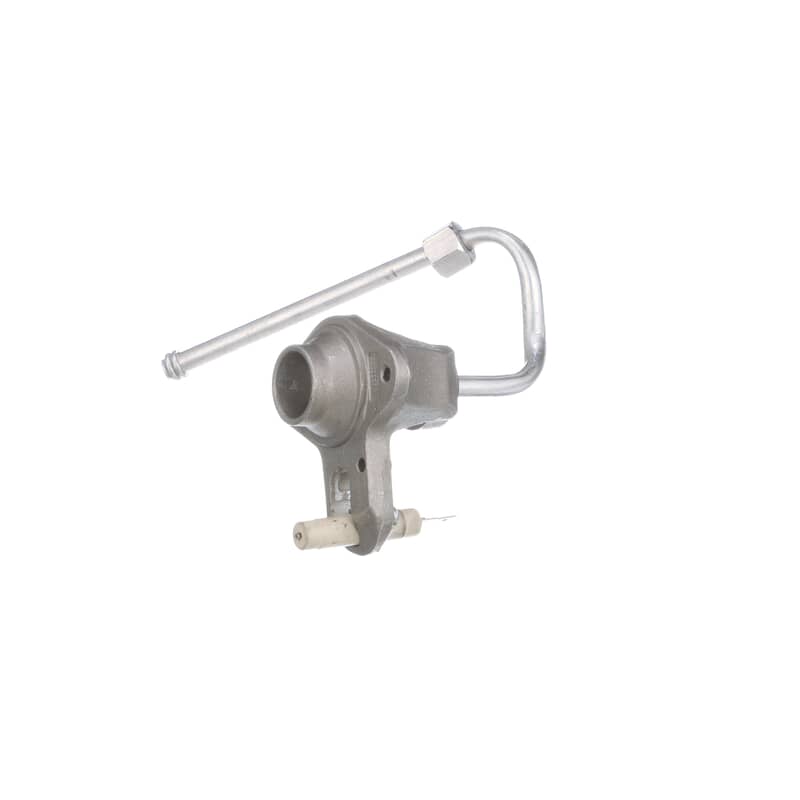

Electrolux Top Burner Igniter Orifice (316430502)

The Electrolux Top Burner Igniter Orifice is a two-part assembly that controls both the spark ignition and the gas flow at each surface burner on a freestanding gas range. The igniter generates the spark that lights the burner, while the orifice regulates how much gas passes through to produce a consistent, controlled flame. Together, they work in sequence each time you turn a burner knob to create a safe and reliable ignition.

The Electrolux Top Burner Igniter Orifice can wear out from repeated heat exposure, grease buildup, food spills, or corrosion around the tip that disrupts the spark path or blocks gas flow. A cracked or damaged igniter tip, a clogged orifice opening, or a worn electrode can all prevent proper ignition and leave you without a working burner.

Look for these symptoms to help determine if this part needs to be replaced:

- Burner clicks repeatedly but does not light

- Burner takes much longer than normal to ignite

- Flame is uneven, weak, or only lights on one side

- Burner igniter continues clicking after the flame is already lit

- Visible damage, cracks, or carbon buildup on the igniter tip

- No spark at all when the burner knob is turned

- Gas smell near the burner without successful ignition
