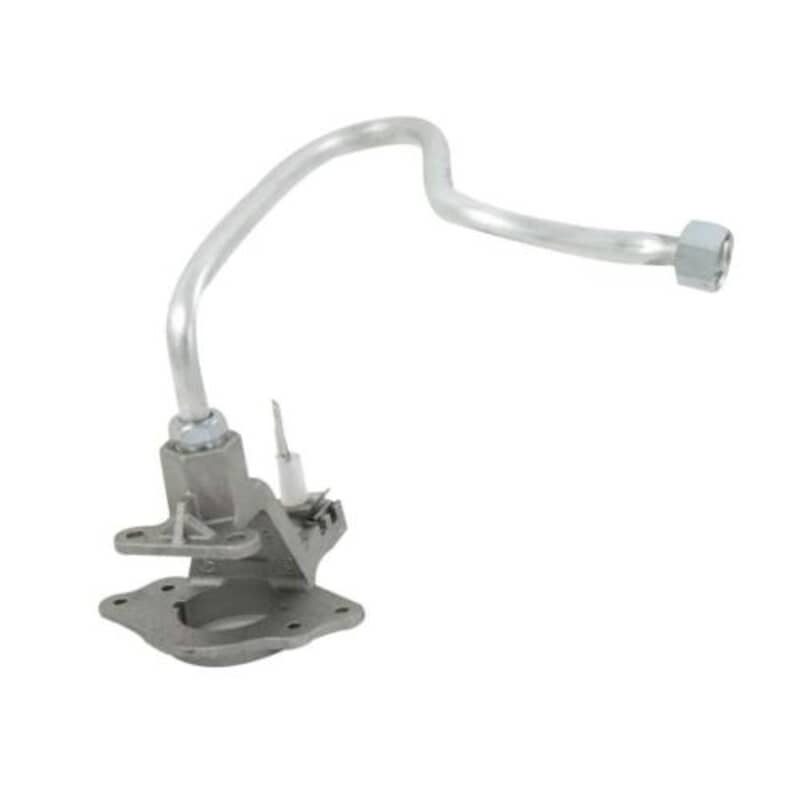

Electrolux Range Burner Igniter Orifice (316536622)

The Electrolux Range Burner Igniter Orifice is the assembly that controls gas flow and spark ignition at each surface burner on your range. The orifice meters the correct amount of gas into the burner, while the igniter generates the spark needed to light the flame when you turn the knob. Together, these components work as a unit to produce a reliable, properly sized flame for cooking.

The Electrolux Range Burner Igniter Orifice can wear out or fail due to food spills, grease buildup, corrosion around the orifice opening, or a cracked igniter tip caused by repeated heat cycles. A clogged or damaged orifice can restrict gas flow and produce a weak or uneven flame, while a faulty igniter may fail to spark or spark continuously without igniting the burner.

These symptoms can help you decide if this part matches the issue you are experiencing on your range:

- Burner will not light when the knob is turned

- Igniter clicks repeatedly but the burner never ignites

- Flame is weak, uneven, or only partially lights around the burner

- Burner produces a yellow or orange flame instead of a steady blue flame

- Igniter continues to spark after the burner is already lit

- Visible cracks, carbon buildup, or damage on the igniter tip

- Gas smell near the burner without the flame lighting successfully
