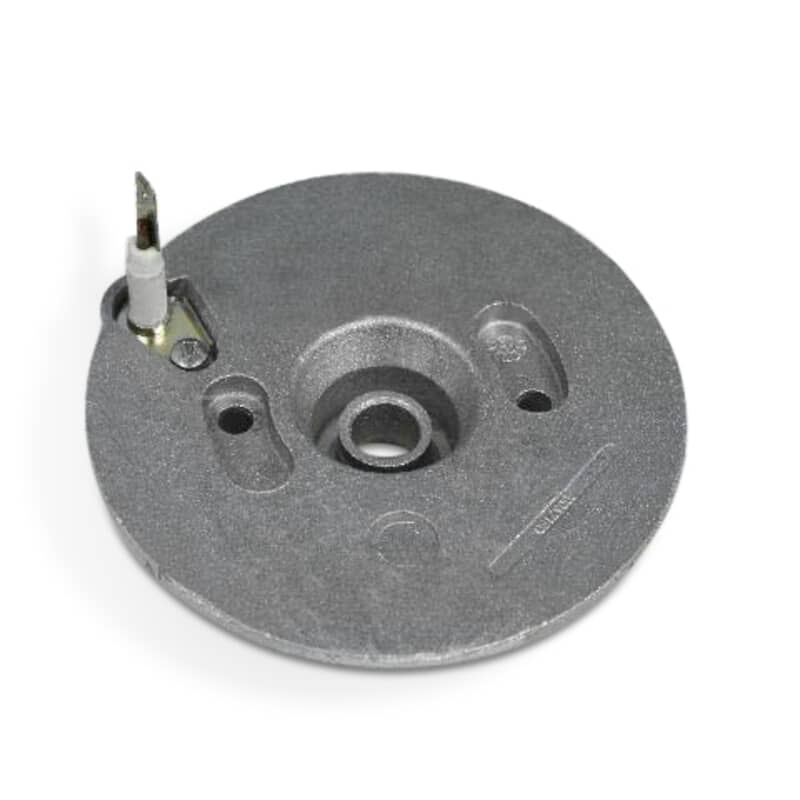

Whirlpool Large Range Burner (74007735)

The Whirlpool Large Range Burner is the main heating element used on the cooktop surface of your gas range, producing the flame that heats pots and pans during cooking. It works by mixing gas and air at the burner head, which is then ignited to create an even, controlled flame for high-heat cooking tasks.

The Whirlpool Large Range Burner can wear out over time due to food spills, grease buildup, corrosion, or physical damage to the burner ports that disrupt proper gas flow and flame distribution. A cracked or clogged burner head is one of the most common causes of failure, often resulting from heavy use or improper cleaning that forces debris into the burner openings.

Look for these symptoms to help determine if your large burner needs to be replaced:

- Burner will not light or takes multiple attempts to ignite

- Flame is uneven, weak, or only lights on part of the burner

- Burner produces an orange or yellow flame instead of a steady blue flame

- Clicking sound continues after the burner is already lit

- Visible cracks, chips, or corrosion on the burner head

- Gas smell near the cooktop when the burner is in use

- Burner lights but goes out shortly after ignition
