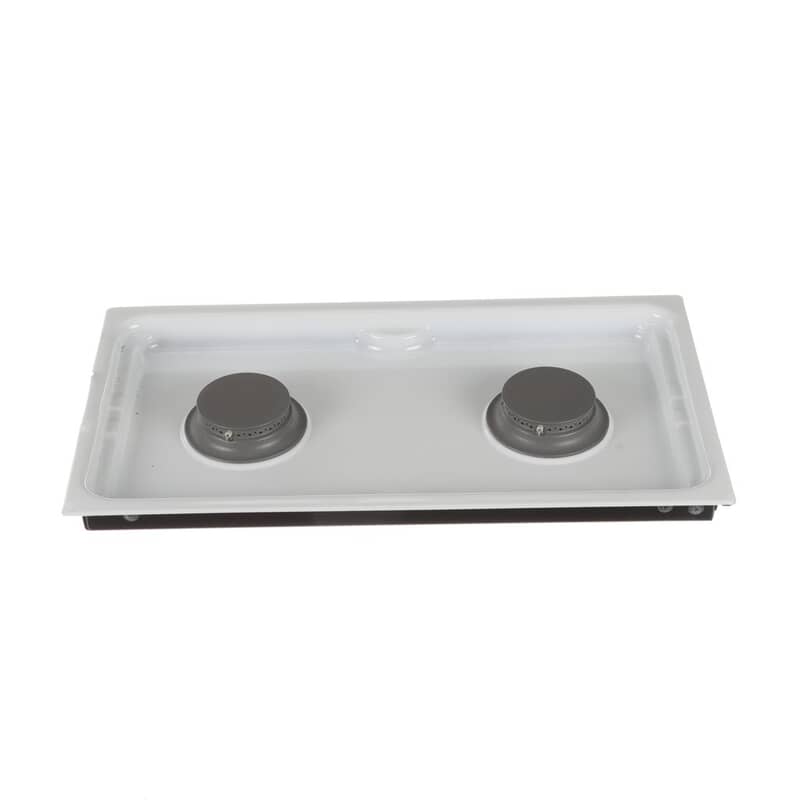

Whirlpool White Sealed Burner Cartridge (JGA8100ADW)

The Whirlpool White Sealed Burner Cartridge is the self-contained burner unit that sits on the cooktop of your gas range and delivers a controlled flame for cooking. It houses the burner head and base in a sealed design that keeps spills and grease from reaching the gas ports below the cooktop surface, helping the burner operate cleanly and efficiently.

The Whirlpool White Sealed Burner Cartridge can wear out or fail when burner ports become clogged with food debris, when the igniter electrode cracks or corrodes, or when the burner cap or base warps from prolonged heat exposure. Spills that seep into the burner assembly can also cause uneven flames, ignition problems, or complete burner failure over time.

These symptoms may point to a failed or damaged sealed burner cartridge on your range:

- Burner will not light even when the igniter clicks

- Flame is uneven, weak, or only burns on one side of the burner

- Burner produces an orange or yellow flame instead of a steady blue flame

- Igniter clicks continuously but the burner never lights

- Visible cracks, chips, or warping on the burner head or base

- Burner lights inconsistently or goes out on its own during use

- White porcelain finish is stained, chipped, or damaged beyond cleaning
