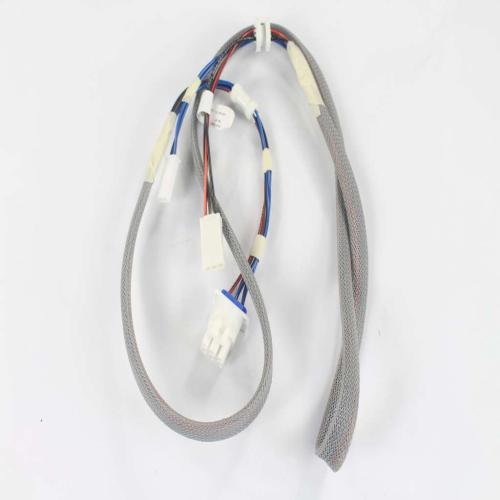

Whirlpool Refrigerator Wiring (W11170612)

The Whirlpool Refrigerator Wiring harness carries electrical power and signals between key refrigerator components, such as the control board, lights, fans, sensors, switches, and dispensers. It routes voltage and data so the refrigerator can cool, defrost, run fans, and respond to door and user inputs.

Wiring can fail from vibration, repeated door opening, pinched or rubbed insulation, moisture, heat near motors or heaters, and loose or corroded connectors. Over time, a conductor can break inside the insulation, or a terminal can back out of a plug. This can cause intermittent faults that come and go as the door moves or the cabinet warms and cools.

Use these symptoms to help decide if a wiring issue matches your problem:

Interior lights, display, or dispenser works only sometimes, or changes when the door is moved

Cooling is inconsistent, with the compressor or fans not running even though settings are correct

Evaporator fan or condenser fan does not run, or runs intermittently

Defrost problems, such as heavy frost buildup, warm temperatures, or repeated defrost error codes

Door switch functions act erratic, such as lights staying on or alarm behavior that does not match the door position

Burnt smell, visible heat damage, or discolored connectors at harness plugs

No power to a specific component even though the component tests good
