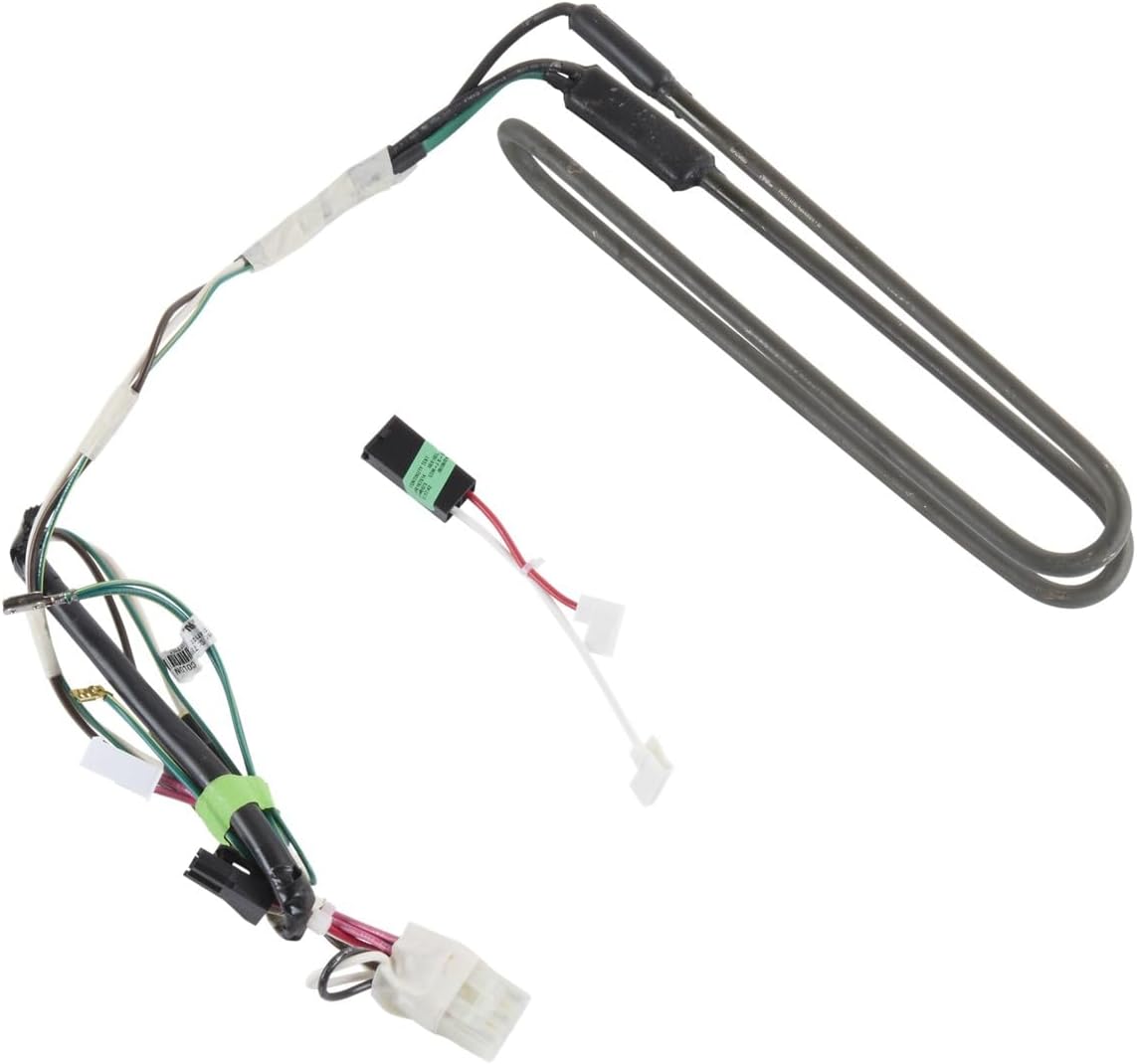

Whirlpool Heater Wiring Harness (W11650662)

The Whirlpool Heater Wiring Harness connects the dishwasher’s main wiring to the heating circuit so power can reach the heater and related temperature or safety components. It carries current through the harness leads and connectors and helps keep the heater circuit stable during wash and dry cycles.

Common failures come from heat damage, moisture intrusion, vibration, or a loose connection at the heater terminals. Over time, a connector can discolor, soften, or lose tension. A wire can chafe or break. Corrosion can raise resistance and cause intermittent heating.

If your dishwasher is not heating or shows heater-related faults, these symptoms can help you decide if this harness matches the problem:

• Dishes come out wet or cool because the unit does not dry.
• Water does not heat during the cycle, leading to poor cleaning.
• Cycle runs longer than normal while trying to reach temperature.
• Intermittent heating that works sometimes and fails other times.
• Burnt smell, melted connector, or discolored wiring near the heater connection.
• Error code or warning tied to heating, temperature, or heater circuit faults.
• Unit stops mid-cycle or drains after a heater circuit fault is detected.
