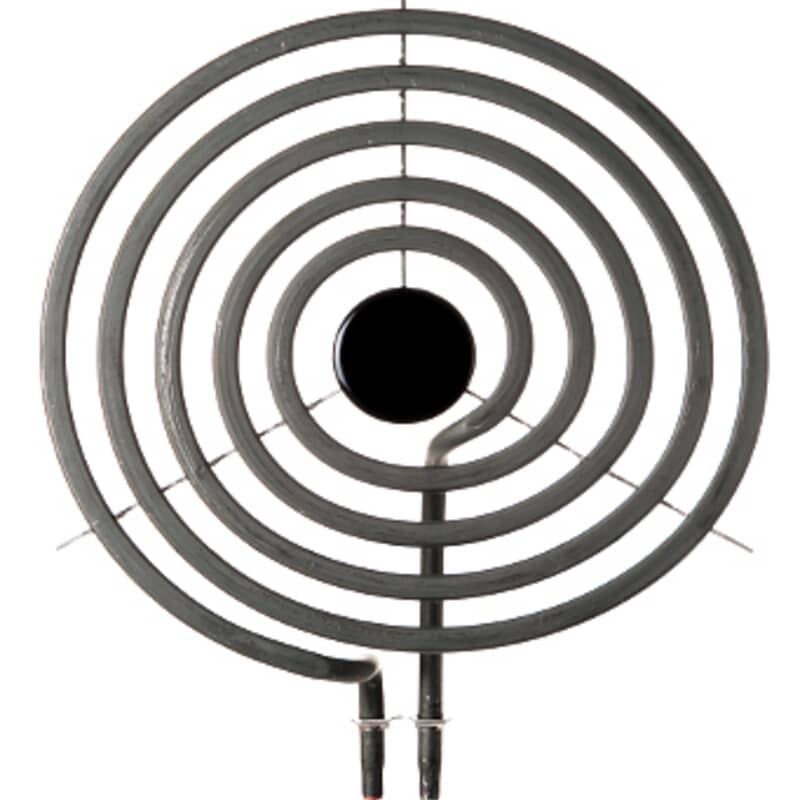

GE Electric Range Surface Element (WB03T10167)

The GE Electric Range Surface Element is the heating coil mounted on the cooktop that generates heat for cooking when electricity passes through its resistive wire. It connects to the surface element receptacle and heats up as current flows through it, allowing you to boil, fry, simmer, and cook at a range of temperatures.

A GE electric range surface element can fail from repeated heat cycling over time, which causes the internal wire to weaken, develop hot spots, or break entirely. Physical damage from spills, impact, or corrosion at the connection terminals can also cause the element to stop heating properly or fail to heat at all.

Look for these symptoms to help determine if your surface element needs to be replaced:

- Burner does not heat up when turned on

- Element heats unevenly or only gets warm in certain spots

- Visible cracks, breaks, or burn marks on the element coil

- Element glows brightly in one area but stays dark in others

- Burner sparks or pops during use

- Element stays on one heat level regardless of the dial setting

- Scorch marks or damage around the element receptacle connection
