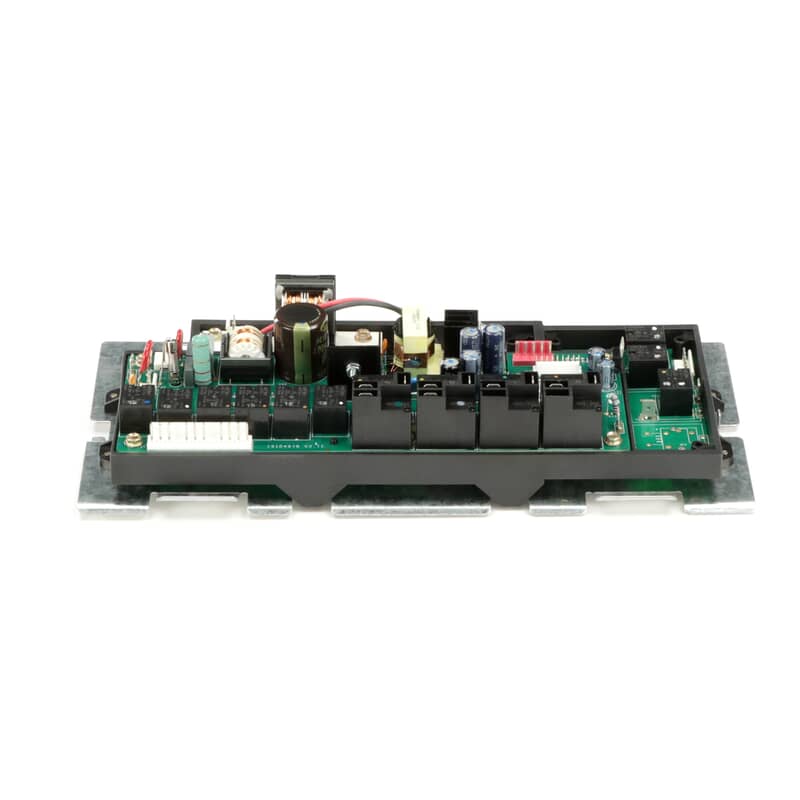

GE Range Relay Board (WB19K10061)

The GE Range Relay Board controls the flow of electrical signals between the main control board and the heating elements or burners in your freestanding dual-fuel range. It uses a series of relays, which are small electrically operated switches, to turn heating components on and off based on commands from the control system. This allows your range to regulate oven temperature and surface burner operation accurately.

The GE Range Relay Board can fail due to power surges, prolonged heat exposure, or worn relay contacts that no longer switch reliably. When one or more relays burn out or stick, the board loses its ability to properly route power to the right components at the right time, which disrupts normal cooking operation.

Watch for these symptoms when deciding if the relay board may need to be replaced:

- Oven does not heat or heats only intermittently

- Oven overheats or does not shut off when it should

- One or more burners or heating elements stop responding

- Control panel sends commands but the range does not respond

- Burning smell or visible scorching near the control area

- Error codes appearing on the range display related to heating or control

- Oven temperature is inconsistent even after calibration
