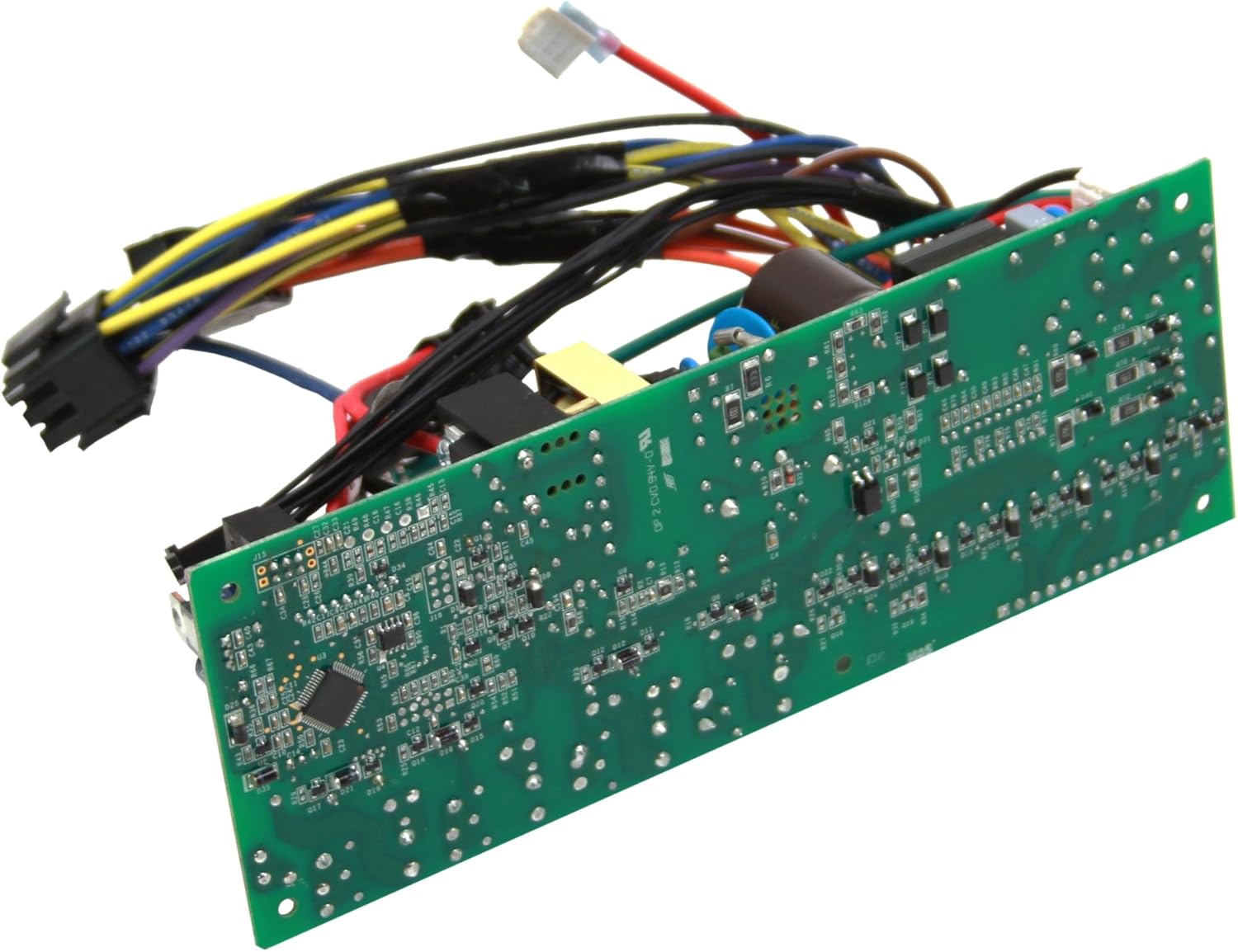

GE Range Power Board (WB23T10024)

The GE Range Power Board is the main electrical control component that manages and distributes power to the key systems in your electric range, including the heating elements, control panel, and other operating circuits. It acts as a central hub that receives incoming power and routes it to the correct components based on the settings you select. Without a functioning power board, your range may be unable to operate at all or may behave unpredictably.

The GE Range Power Board can fail due to power surges, voltage spikes, overheating, or general wear on its internal electrical components over time. Moisture exposure, grease buildup near the board, or a faulty connection can also cause the board to short out or stop functioning correctly.

If your electric range is showing any of these signs, the power board may need to be replaced:

- Range has no power and does not respond when turned on

- Burners or bake and broil elements do not heat up

- Control panel is unresponsive or displays an error code

- Range trips the circuit breaker repeatedly

- Some functions work while others do not

- Range turns on or shuts off unexpectedly on its own

- Visible burn marks or a burnt smell coming from inside the range
