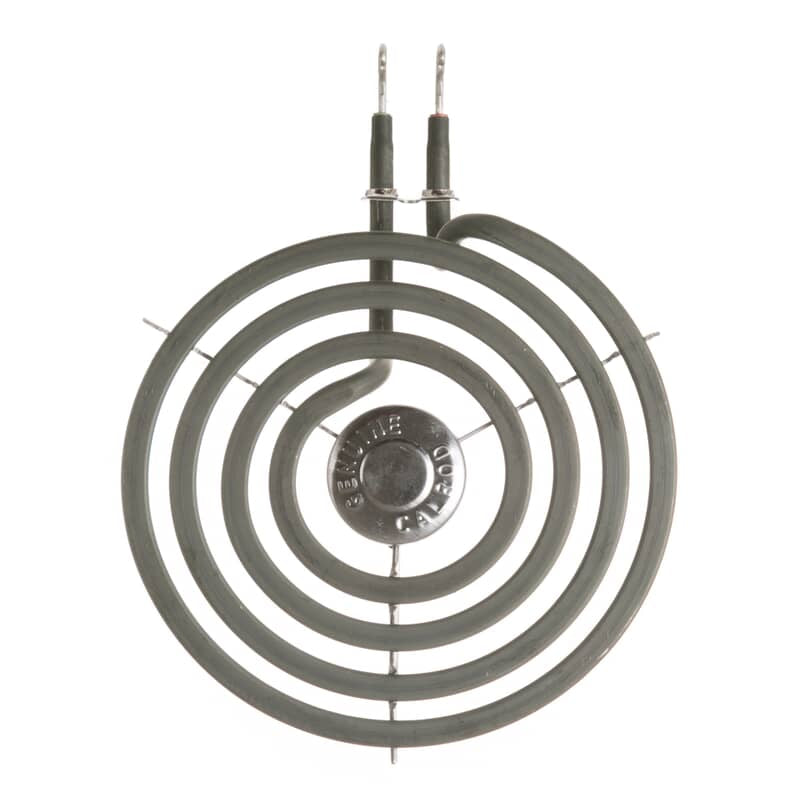

GE 6" Electric Range Surface Unit (WB30K10016)

The GE 6" Electric Range Surface Unit is the coil heating element that sits on the cooktop and provides direct heat for cooking. It plugs into a receptacle on the range and uses electrical resistance to generate heat, which transfers to pots and pans placed on top of it.

A GE electric range surface unit can fail from repeated heating and cooling cycles that cause the coil to crack or burn out, exposure to spilled liquids that corrode the connections, or physical damage from heavy cookware. Over time, the element may develop hot spots, lose the ability to heat evenly, or stop working entirely when the internal coil breaks.

Look for these symptoms to help determine if your surface unit needs to be replaced:

- Burner does not heat up at all when turned on

- Element heats unevenly or only gets warm in certain spots

- Visible cracks, burns, or blistering on the coil surface

- Burner sparks or arcs at the plug-in connection

- Element glows orange or red in irregular patches instead of evenly

- Burner stays on one heat level regardless of the control setting

- Burning smell or smoke coming from the cooktop surface during use
