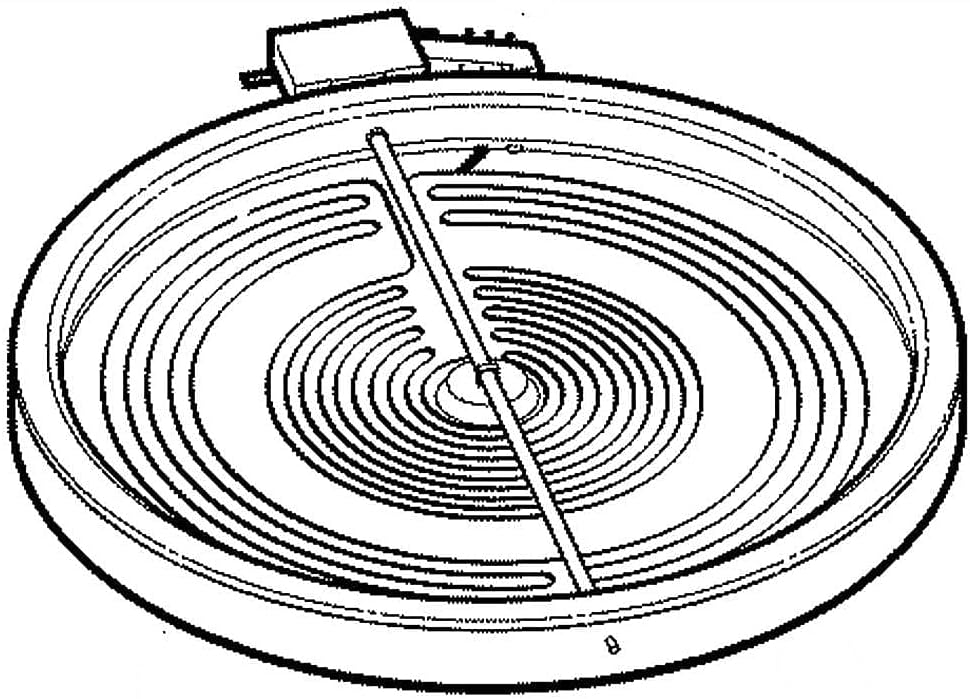

GE Electric Range Dual Radiant Element (WB30X24111)

The GE Electric Range Dual Radiant Element is a cooktop heating component that uses two separate heating zones — a smaller inner ring and a larger outer ring — to give you flexible temperature control across different pot and pan sizes. When you select a low to medium heat setting, only the inner element activates, while higher settings or the expanded cooking zone engage the full dual element for faster, more even heat distribution across the surface.

A GE dual radiant element can burn out or fail from repeated heating cycles, power surges, spills that seep beneath the glass cooktop surface, or physical damage from heavy cookware. One or both rings may stop working independently, making it difficult to control heat accurately or use the burner at all.

Watch for these symptoms to help determine if your dual radiant element needs to be replaced:

- Burner does not heat up at all when selected

- Only the inner or outer ring heats, but not both as expected

- Element glows unevenly or in only one section of the ring

- Burner takes much longer than usual to reach cooking temperature

- Visible cracks, burn marks, or blistering under the cooktop glass above the element

- Error code or indicator light related to a surface burner on the range display

- Burner cycles on and off erratically instead of holding steady heat
