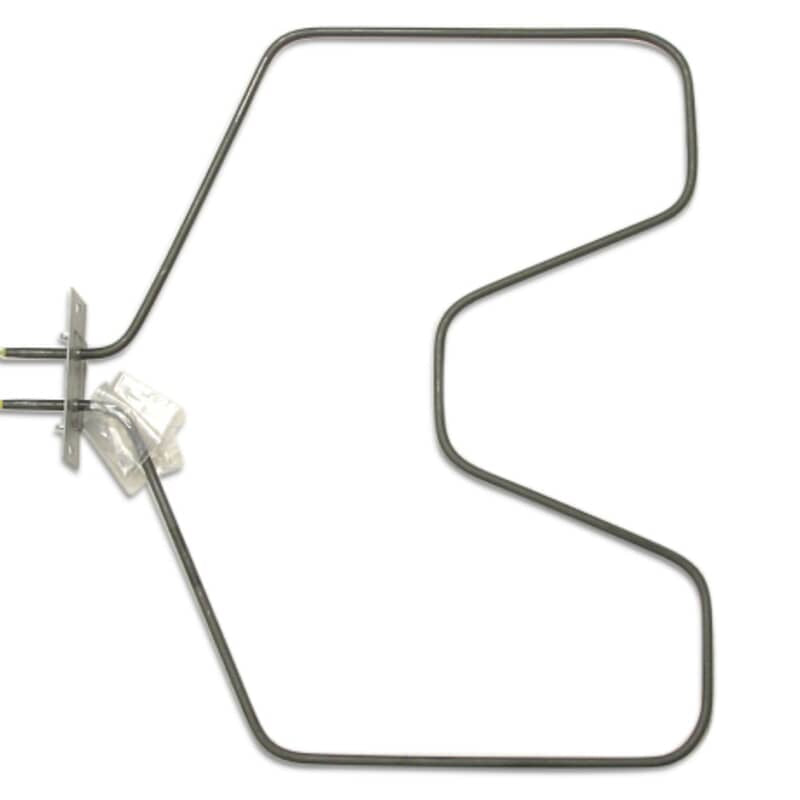

GE Electric Range Bake Unit (WB44X5082)

The GE Electric Range Bake Unit is the lower heating element in your electric range that provides the heat needed for baking and broiling in the oven cavity. It works by converting electrical current into radiant heat, cycling on and off to maintain the oven temperature set on your control panel. This element sits at the bottom of the oven and is the primary heat source for most cooking functions.

A GE electric range bake unit can fail from age, repeated heating and cooling cycles, grease buildup, or a power surge that causes the element to burn out or short. Physical damage such as cracks or blistering on the element coil are also common causes of failure that prevent it from heating properly.

Look for these symptoms to help determine if your bake unit needs to be replaced:

- Oven does not heat up at all when set to bake

- Food takes much longer than expected to cook or bake unevenly

- Visible cracks, holes, or burn marks on the element coil

- Element glows only partially or not at all during a bake cycle

- Sparking or flashing coming from the bottom of the oven

- Burning smell or smoke coming from the oven floor area

- Oven temperature is consistently lower than the set temperature
