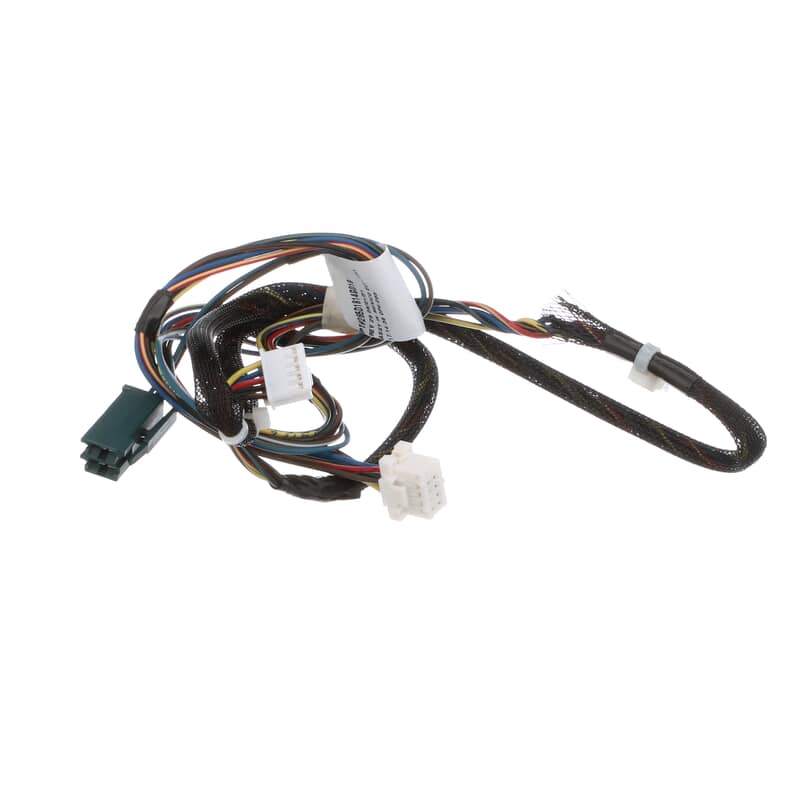

GE Dishwasher Door Harness (WD21X21664)

The GE Dishwasher Door Harness is the wiring assembly that runs through the door panel and connects the control board to the door-mounted components such as the control panel, buttons, and display. It carries the electrical signals and power needed for the door controls to communicate with the dishwasher and respond to your selections during a wash cycle.

The GE Dishwasher Door Harness can fail from repeated flexing of the wires as the door is opened and closed over time, leading to broken or frayed wires inside the harness. Heat, moisture exposure inside the door, or a loose connector can also cause intermittent or complete loss of connection between the control panel and the main board.

These symptoms may point to a door harness issue in your dishwasher:

- Control panel buttons are unresponsive or work only intermittently

- Display is blank, dim, or shows incorrect information

- Dishwasher does not start when a cycle is selected

- Cycle settings reset on their own or behave erratically

- Visible damage, melting, or burn marks on wiring inside the door

- Error codes appear related to the control panel or door components
