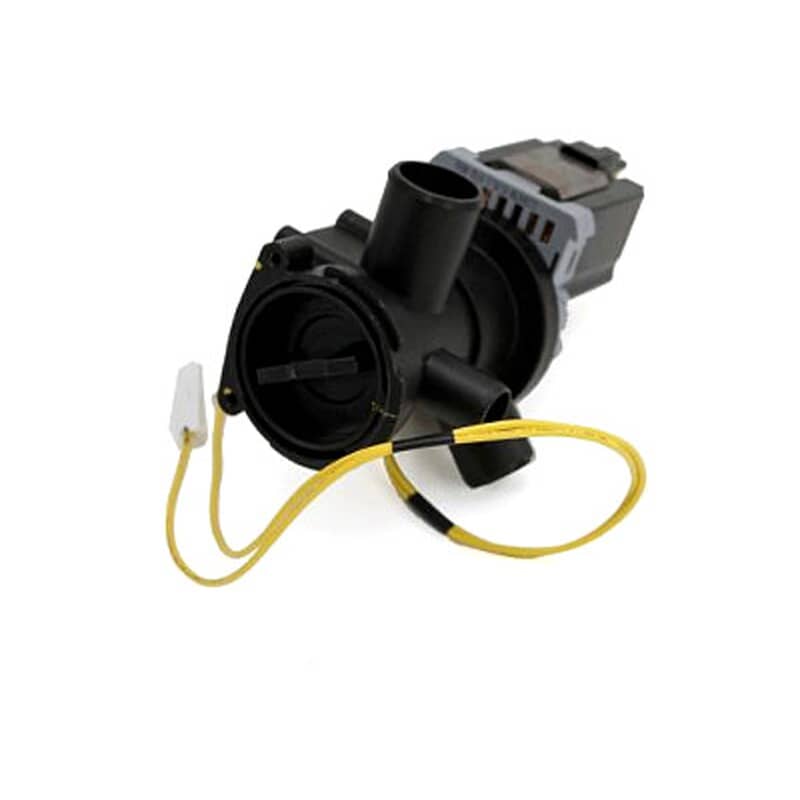

GE Washer Drain Pump (WH23X10011)

The GE Washer Drain Pump removes water from the tub by pulling it out through the drain hose at the end of a wash or rinse cycle. It is driven by a small motor that spins an impeller, creating the suction needed to clear water before the spin cycle begins.

A GE washer drain pump can fail due to worn internal components, a seized or broken impeller, debris buildup from lint, coins, or small items that pass through the tub, or a burned-out pump motor. Exposure to hard water minerals over time can also cause the pump to work harder and eventually stop draining reliably.

These symptoms can help you decide if a drain pump issue matches your problem:

- Washer will not drain water at the end of a cycle

- Standing water remains in the tub after the cycle finishes

- Loud humming, grinding, or rattling noise during the drain portion of the cycle

- Washer stops mid-cycle and displays a drain error code

- Spin cycle starts but clothes come out soaking wet

- Visible water leaking from the bottom of the washer near the pump

- Washer takes much longer than normal to complete a cycle
