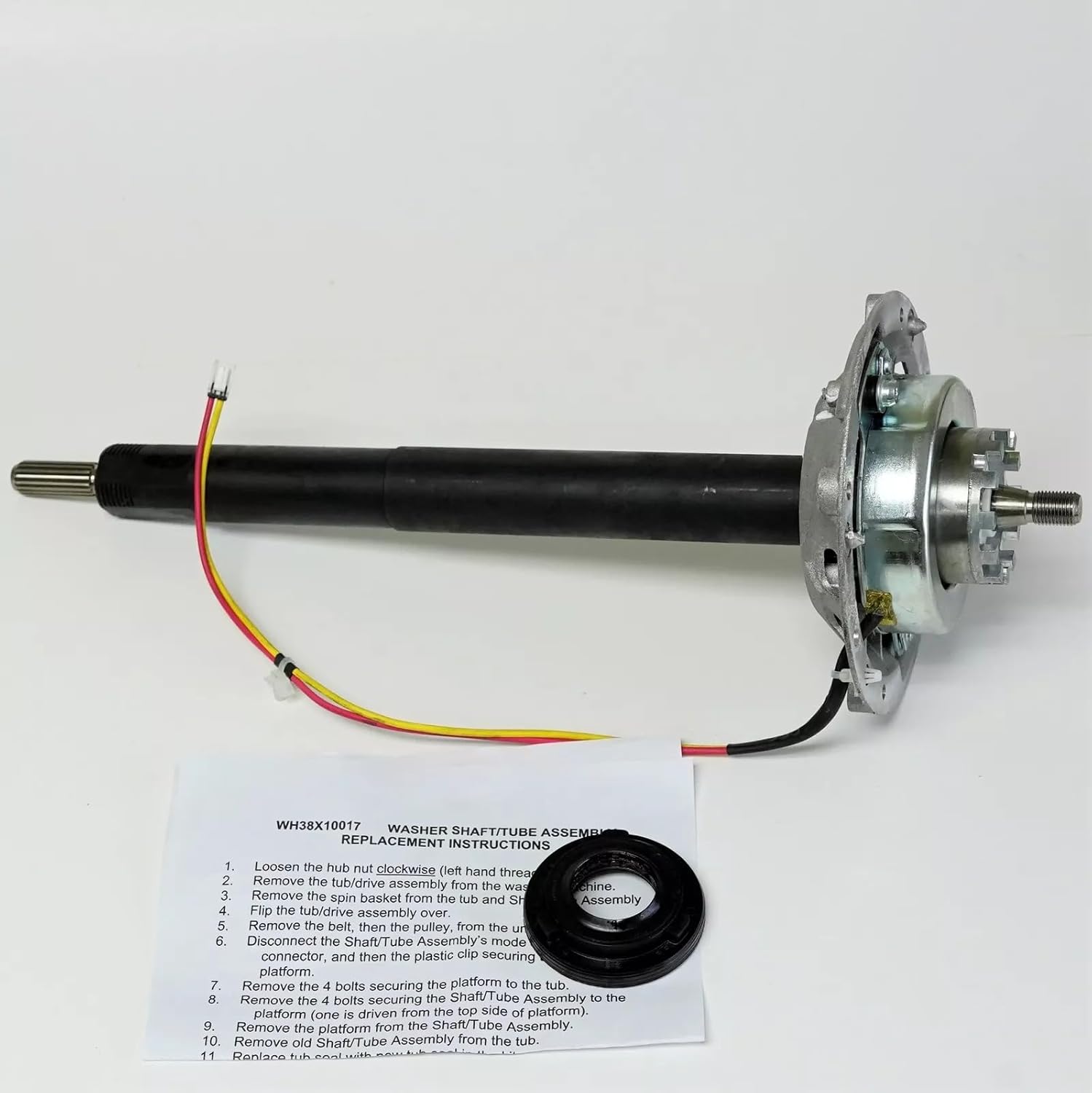

GE Washer Shaft & Mode Shifter (WH38X10017)

The GE Washer Shaft & Mode Shifter is a mechanical assembly that connects the motor to the wash basket and controls the transition between agitation and spin modes during a wash cycle. It works by shifting the drive system from the back-and-forth motion used during washing to the full rotation needed for spinning out water. This part is central to how the washer moves through each stage of the cycle.

The GE Washer Shaft & Mode Shifter can wear out over time due to normal friction, broken plastic tabs on the shifter collar, or damage caused by repeated heavy loads. When the mode shifter fails, the washer may struggle to complete a cycle properly, getting stuck in one mode or making unusual noises as it tries to switch between agitation and spin.

Watch for these symptoms to help determine if this part may need to be replaced:

- Washer agitates but will not spin or drain properly

- Washer spins but has no agitation during the wash cycle

- Loud clicking, grinding, or humming when shifting between modes

- Cycle stops mid-wash with no error code or obvious cause

- Basket moves sluggishly or inconsistently during agitation

- Clothes come out soaking wet after the spin cycle

- Visible cracks or broken tabs on the shifter assembly
