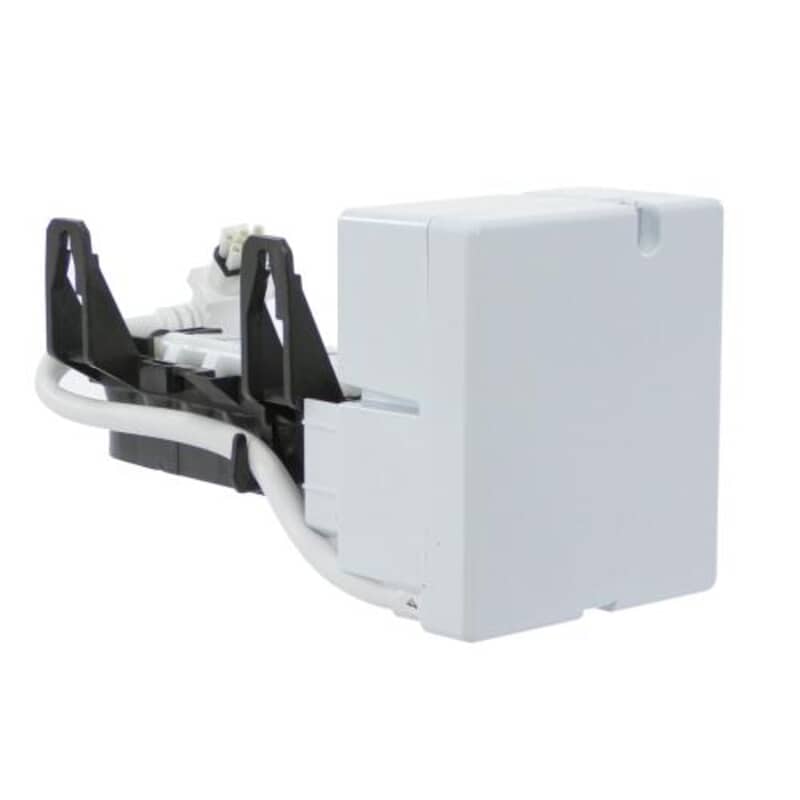

GE Freezer Ice Maker (WR30X28698)

The GE Freezer Ice Maker replaces the ice-making assembly responsible for producing and harvesting ice cubes inside your GE freezer. It uses a built-in thermostat and heating element to freeze water in the mold, then releases and drops the finished cubes into the ice bin below. The unit connects to the water inlet valve and controls the entire ice-making cycle from fill to harvest.

A GE Freezer Ice Maker can fail due to worn-out components in the harvest mechanism, a faulty internal thermostat, or damage from freezer temperature fluctuations over time. Mineral deposits from hard water can clog the fill cup or mold, and the motor module can burn out after years of repeated cycling, leaving the unit unable to complete a full ice-making cycle.

Look for these symptoms to help determine if your ice maker needs to be replaced:

- Freezer stops producing ice entirely

- Ice maker fills with water but cubes are not harvested or ejected

- Unit produces ice slowly or in smaller quantities than normal

- Ice cubes are misshapen, hollow, or partially formed

- Ice maker overflows or water leaks into the ice bin

- Loud clicking, grinding, or buzzing sounds during the ice-making cycle

- Ice maker arm or shutoff switch does not respond correctly
